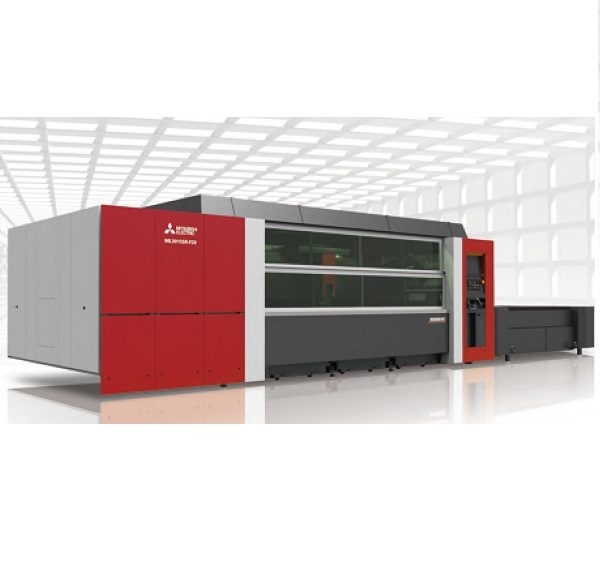

MITSUBISHI SR-F Series

Comes standard with a fiber laser resonator, a processing head and a safety cover.
M700 Series Control
15” touch screen
Multi-Channel dust-collection mechanism

Mitsubishi’s High-Speed Control for Lasers (MHC-L), an original control method which maximizes fiber lasers high speed cutting capability. Controls bean on/off timing 1 micro-second increments. The system includes a timing calculator that allows the machine to deliver fast rise time when the laser needs power.
Motion Cut- features the beam on/off time and axial movement simultaneously to eliminate the need for the axes stop.
Eco Mode reduces cost during standby by up to 70%
Power Control System provides power stability of +/- 1%
Automatic Focusing allows for easy and consistent focusing.
Reduction of cutting time by fast command execution.
Long term stabile processing by all fiber composition.
Remote 360

LASER MACHINE	ML 3015 SR-F
Machine Structure	Welded Frame with Precision Helical Rack & Pinion, Direct Drives
Travel Drive Method	X,Y, Z simultaneous 3-axes
Control Method	X,Y, and Z simultaneous 3 axis control
X – Axis Stroke	122.05”
Y – Axis Stroke	61.02”
Z – Axis Stroke	5.9”
Maximum Work Piece Size	120.080” x 60.040”
Maximum Processing Feed Rate	2000 (in/min)
Maximum Work Piece Weight	1550 lbs.
Table Pass Height	33.5”
Rapid Travel Speed	3940 single axis, 5550 simultaneous (in/min)
Minimum Command Input	0.001mm / 0.0001”
Drive Motor Type	Intelligent AC Servo
Positioning Accuracy	0.0019”/20”
Repeatability	±0.00039”
Machine Unit Dimensions	406.0” (W) x 112.0” (H) x 123.2” (D)
Total System Weight	19621 lbs.
Pallet Change Time	Approximately 40 seconds
Pallet Changer Weight	4500 lbs.
Pallet Changer Drive Mechanism	Chain
For Installation and Facility Requirements:	See Pre-Installation Manual
