Standard version:
– Centrally installed and user friendly control panel.
– Automatic table opening of 0 – 100 mm.

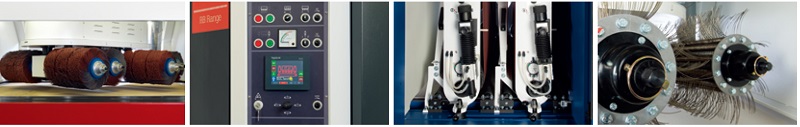

– Carrousel rotating brush head equipped with 4 brushes rotating to the left and 4 to the right.
– Frequency-controlled conveyor belt with a speed ranging from 0.2 to 8 m/min.
– Window panels and lit interior for process observation.
– Brushes with an extremely long service life no less than 3000 hours.
– LED beams on the infeed and outfeed that show the machine status.
– Available with 1, 2, 3 or 4 heads.
– Vacuum table with automatic cleaning cycle.
– Quick replace system for brushes and abrasive belts.
– CE certified.

Applications and benefits:
– Contact time with brushes: 1600 mm.
– The 8 brushes have a total of 46 m2 of abrasive medium.
– The removal of burrs due to laser, plasma, water jet cut and embossed parts in one go.
– Flat, formed and 3D parts with pockets/protrusions.
– Preliminary removal of large burrs and fi nishing of surfaces.
– Stainless steel, mild steel, aluminium, copper, etc.
– Machining of mixed materials with suitable wet extraction.
– Deburring Zintec, galvanised and plated material.
– Treating small parts (50 x 50 mm) is possible with the standard vacuum table.
– Materials: aluzinc, light metal and plastic without damage including ink-marked parts.

Specifications:
– Number of heads: 1-4
– Head types: rotary brush, drum

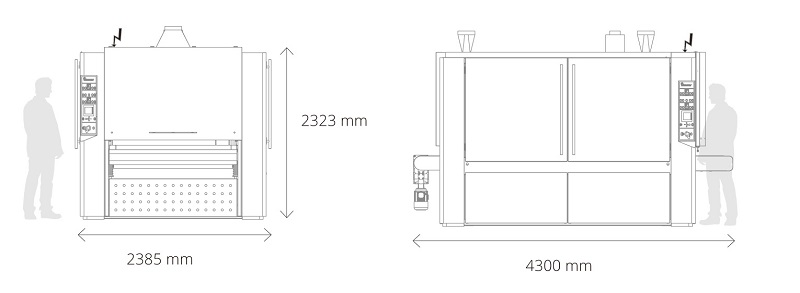

– Machine widths: 1000 and 1350 mm
– Abrasive brush size: 350 mm
– Number of brushes: 8
– Quick change brush mounting
– 0-100 mm bed opening
– 0,6-8 m/min feed speed, 2,6 KW
– Up to 11 KW main drive motor
– 180 mm diameter adjustable contact drum
– Vacuum conveyor bed is standard
